Connector Covers

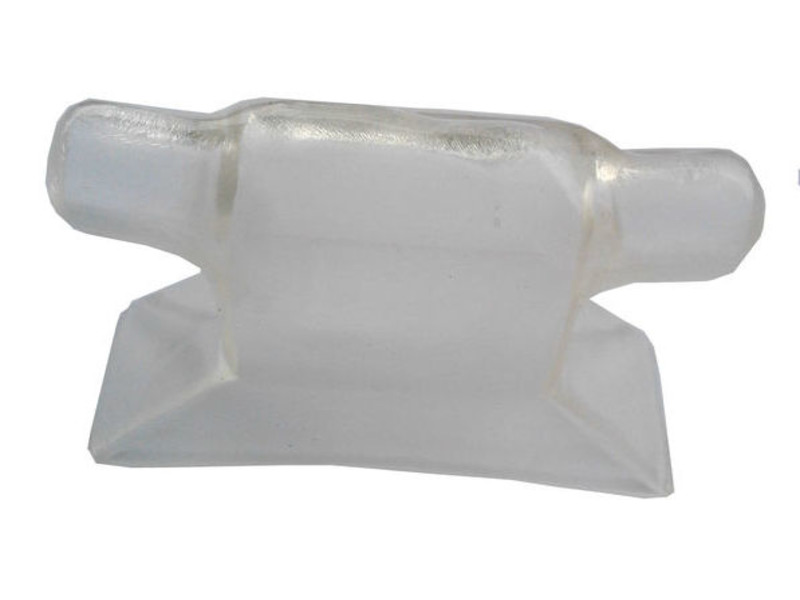

Connector Covers are available for every series and all number of poles. These Covers ensure apt fitment and perfect water/dust/moisture proofing for continuous uninterrupted power supply. We developed the formulation to provide highest transparency possible in our connector covers.
Other Products

Product Showcase

  • Technical Specifications


    Properties Category

    Test Property

    Standard Test Method    		 Standard Grades of Plastisol
    GPNT,GPTB,HRNT, GPBL,GPTG,HGTB
    Specified Values
    *Note : All the above tests are conducted as per testing plans - ref docs QA/QIP 02/8.2 REV NO 1 and QA/QIP 03/7.2 Rev No.00 at an accredited laboratory/ inhouse lab facility
    Electrical Properties Dielectric Strength ASTM D149/IEC 60243 4~10kV/mm
    Volume Resistivity ASTM D257 1X109~1X1011Ohm
    Mechanical Properties Tensile Strength ASTM D638/JIS K6723 6.3~8.83MPa
    Elongation ASTM D638/JIS K6723 300-520%
    Hardness ASTM D2240 50-80 Shore A
    Flammability UL-94 v-0 Self Extinguishes With in 15 Seconds
    Tear Strength ASTM D 624 >20N/mm
    Thermal Properties Thermal Stability at 900C/2 hours VD001 No Cracks/blisters/ bubbles on surface
    Freezing (-)400C/30 min No Cracks/blisters/ bubbles on surface
    Retention of Tensile Strength after thermal ageing at 1200C/120 hours ASTM D638/ JIS K6723 >90%
    Retention of Elongation after thermal ageing at 1200C/120 hours ASTM D638/ JIS K6723 >40%
    Chemical Properties Retention of Tensile Strength After Oil ageing at 700C/4 hours ASTM D638/JIS K6723 >80%
    Retention of Elongation after Oil ageing at 700C/4 hours ASTM D638/JIS K6723 >50%
    RoHS Cd,Pb,Hg,Cr6+,PBBs,PBDEs IEC 62321:2008 Not Detected
    Colour -- -- -- -- Black, Transparent Blue,Transparent Green,Trasparent Natural
